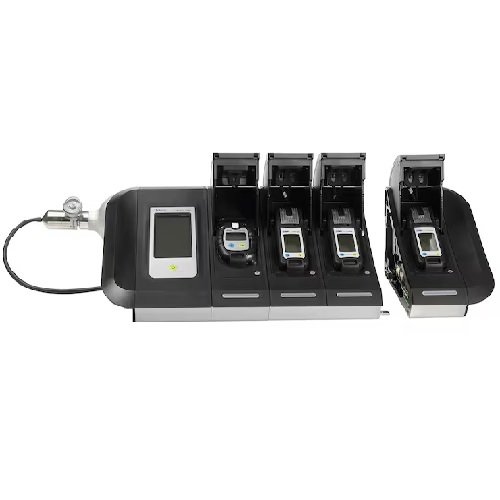

Dräger X-dock 6300 Calibration Station for X-am Gas Detectors

Dräger X-dock 6300 Calibration Station for X-am Gas Detectors

Features

• Fully automatic bump test and calibration
• Fast test times: approx. 8–15 seconds
• Reduced test gas consumption (~300 ml/min)
• Touchscreen control on the master module
• Stores all test and calibration data
• Supports up to 10 modules for X-am and Pac gas detectors
• Verifies alarm functions (visual, audible, vibration)
• Compatible with Dräger X-am 1/2/5 series detectors
• Software integration for fleet management
• USB and Ethernet connectivity
• Fresh air inlet and waste gas outlet included
• Optional charging function for X-am detectors
• Expandable gas inlet ports (up to 3 test gas inlets)
• Suitable for desktop or wall-mounted setup
• 2 GB internal memory

Specifications

• Compatible Devices: Dräger X-am 1/2/5 series gas detectors
• Test Gas Inlets: 3
• Test Time: 8–15 seconds per sensor
• Power Supply: 24 V DC (vehicle power 12 V optional)
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Communication: USB 2.0, Ethernet
• Data Storage: Approx. 2 GB internal memory
• Dimensions (Master Module): 119 × 130 × 250 mm
