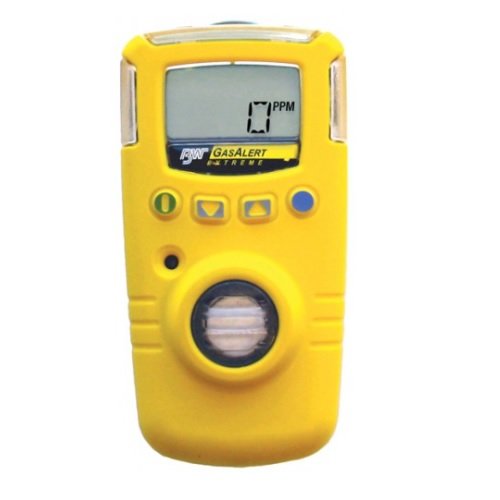

BW GasAlert Extreme H₂S Gas Detector GAXT-H-DL

BW GasAlert Extreme H₂S Gas Detector GAXT-H-DL

Features

• Detects Hydrogen Sulfide (H₂S) in real time
• LCD continuously displays gas concentration and alarm status
• Visual, audible (~95 dB), and vibrating alarms for full alert coverage
• Alarm types include High, Low, TWA, and STEL thresholds
• Integrated data logging for exposure and event tracking
• One-button operation for ease of use in the field
• Password protection to restrict configuration access
• Lightweight and wearable for personal gas monitoring
• Shock-resistant design with protective rubber housing
• IP66/67 rated for water and dust resistance
• AutoZero function at startup ensures baseline accuracy
• Multilingual support: English, French, German, Spanish, Portuguese
• Compatible with BW MicroDock II for automated testing and calibration

Specifications

• Target Gas: Hydrogen Sulfide (H₂S)
• Measurement Range: 0 to 100 ppm
• Resolution: 1 ppm
• Alarm Setpoints (default):
  • Low: 10 ppm
  • High: 15 ppm
  • TWA: 10 ppm
  • STEL: 15 ppm
• Operating Temperature: –40°C to +50°C (–40°F to +122°F)
• Humidity Range: 15% to 90% RH (non-condensing)
