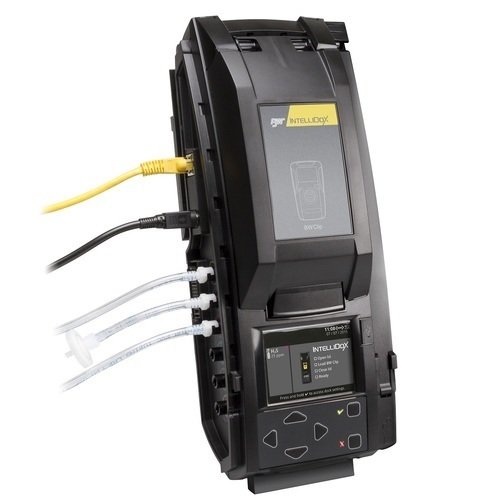

DX-MCLP IntelliDoX Docking Station for GasAlertMicroClip XL / X3

DX-MCLP IntelliDoX Docking Station for GasAlertMicroClip XL / X3

Features

• Automatic bump testing and calibration
• FastBump – completes in just 10 seconds
• Compatible with GasAlert MicroClip XL / X3
• Infrared communication with detector (no cable needed)
• LCD display with pass/fail/test status indicators
• Stores bump/calibration/data logs internally
• USB and Ethernet connectivity
• Gang up to 5 modules together
• Each module has its own pump and controls
• Works with Fleet Manager II software
• Wall-mountable or freestanding
• User-configurable alarm settings, test intervals, and more
• 2-year manufacturer warranty

Specifications

• Dimensions: 13.8 × 36.2 × 10.9 cm (5.4 × 14.2 × 4.3 in)
• Weight: 1.91 kg (4.2 lbs)
• Power Supply: 12 V DC, 8.33 A
• Pump Flow Rate: 350 ml/min
• Test Time:
  • FastBump: ~10 sec
  • Standard bump/calibration: ~40 sec
• Data Storage: ~2 GB internal memory
• Interfaces: USB port, Ethernet port
• Communication Method: Infrared (IR)
• Certifications: CSA/UL 61010-1, CE
• Warranty: 2 years
